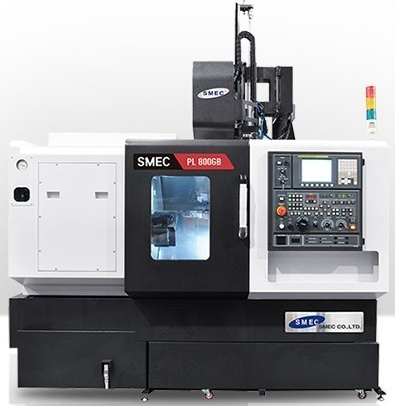

SPECIAL CNC MACHINES SMEC PL800GB

Home » CATALOG » Special CNC machines and automation » SPECIAL CNC MACHINES SMEC PL800GB

Max. turning diameter, mm: 650
Max. machining length, mm: 150
Chuck size, mm: no

Specifications

Specifications			[ ] : Оption
Description			PL800GB
Capacity	Swing over bed	mm	800
	Max. turning diameter	mm	650
	Max. machining length	mm	150
Spindle	Spindle speed	rpm	2200
	Spindle nose	АSА	A2-6
	Draw tube ID	mm	52
	Spindle bore diameter	mm	61
	Motor (Cont./Max)	kW	15/11
Travels	X-axis travel	mm	400
	Z-axis travel	mm	400
	X-axis Rapid travers rate	m/min	24
	Z-axis Rapid travers rate	m/min	30
Turret	Number of tool stations	ea	[2]
Machine	Size	mm	2889x1806x1886
	Weight	kg	3600
	Electric power supply	kVA	25
Controller			Fanuc
*Design and specifications subject to change without notice.

Accessories To order

Standart Accessories

Controller Fanuc Plus Oi-TF Japan;
10.4 ”TFT LCD color Fanuc monitor;
LED working area lighting;
Complete splash guard for work area;
Automatic lubrication system;
Blocking door opening during operation;
Hydraulic system;
Food switch part clamp;
Clamping part confirmation;
Patrol light, 3 colors;
High pressure coolant system;
Transformer 380V;
Leveling kit;
Anchor bolt kit;
Fanuc CNC Programming Technical Documentation;
Technical documentation for machine maintenance;
Connectors on the CNC controller::
PCMCIA card slot;
USB slot;
RJ-45 Ethernet connector;
RS-232 connector.

Optional Accessories

Oil skimmer;
Coolant pressure up;
Coolant Gun;
Automatic CNC control door open / close;
Robot interface;
Coolant chiller;
Electric cabinet air conditioner;
Memory of the CNC up to 2GB ;
OEE equipment efficiency monitoring system.

Do you need more information or a selection of machines for a project ?

SEND AN INQUIRY

Unique model

Specially developed unique model of lathe with grinding spindle for processing ceramics and quartz.

Simultaneous processing

The machining options for the inner and outer diameters and the fitted sliding block enable simultaneous coarse grinding and polishing as well as ceramic grinding.

Automatic Tool Changer

It is Double swing arm swing type by memory random method and has no error during tool changing and minimize idle time.
